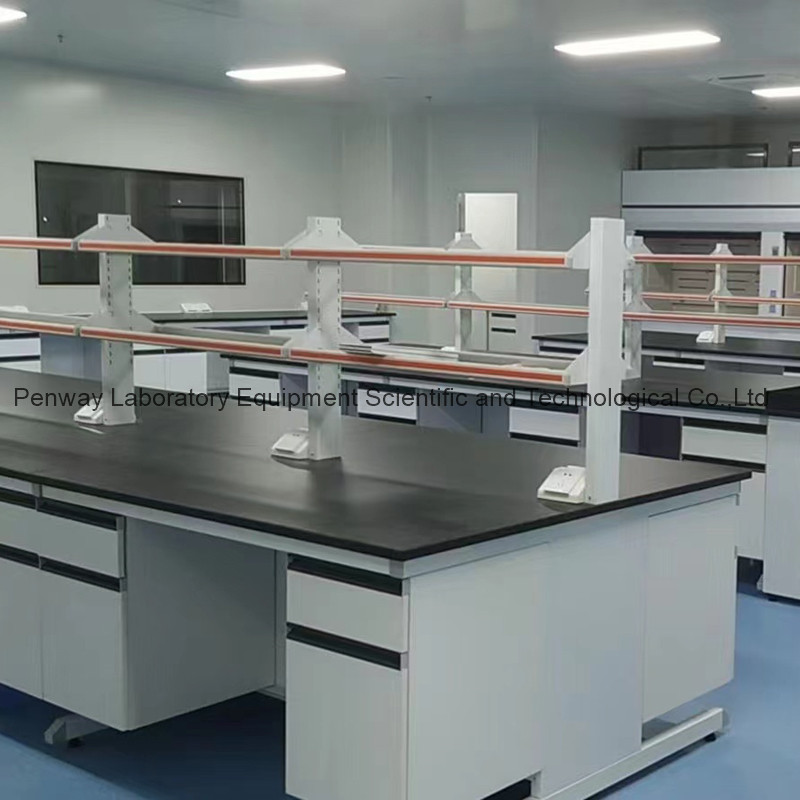

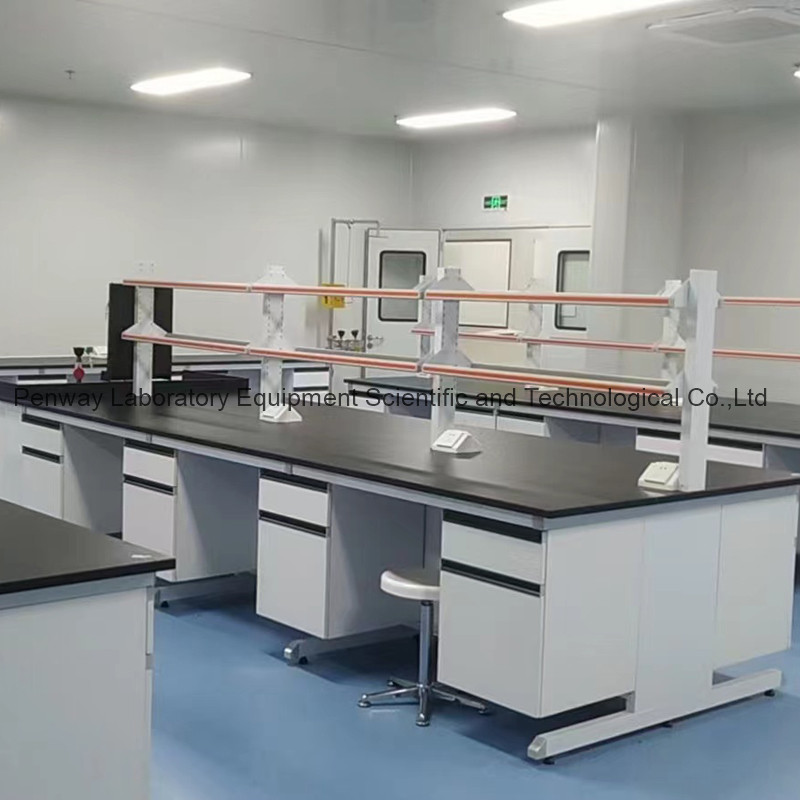

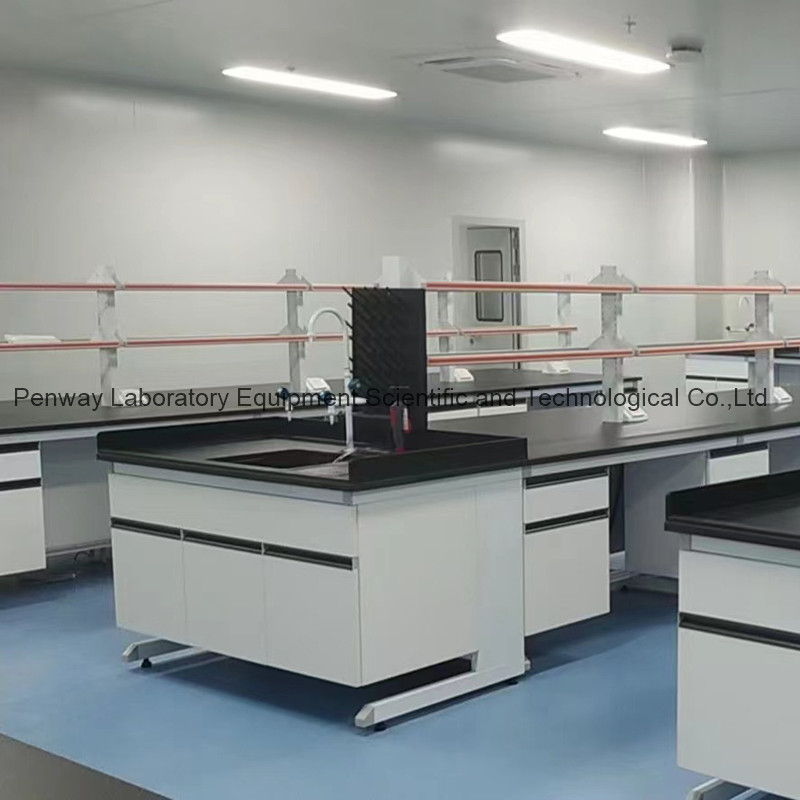

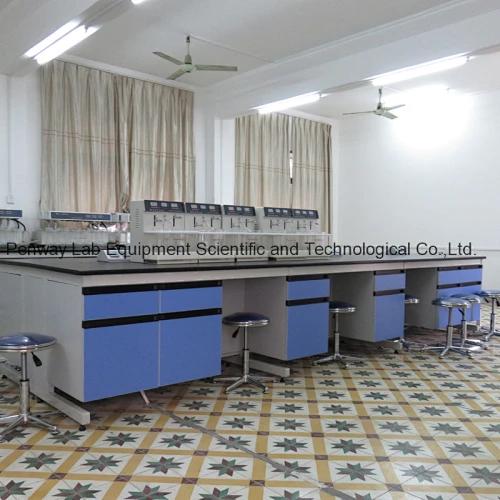

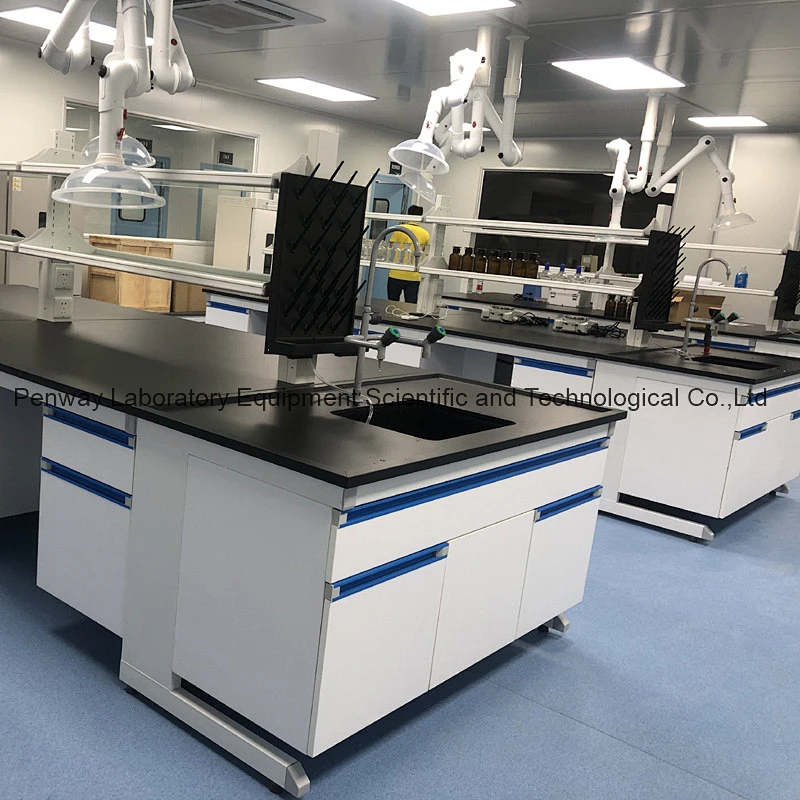

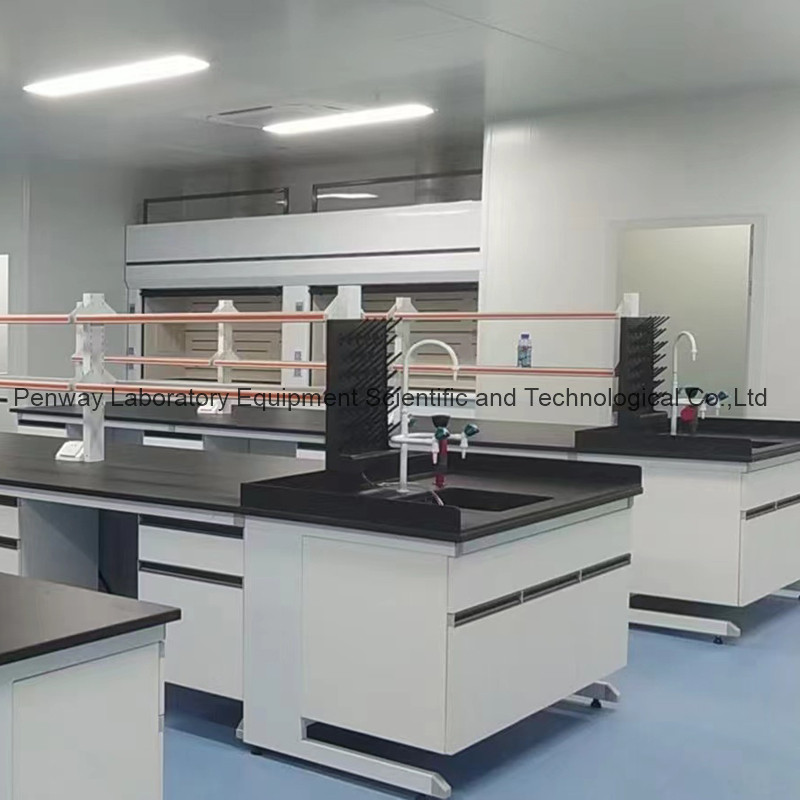

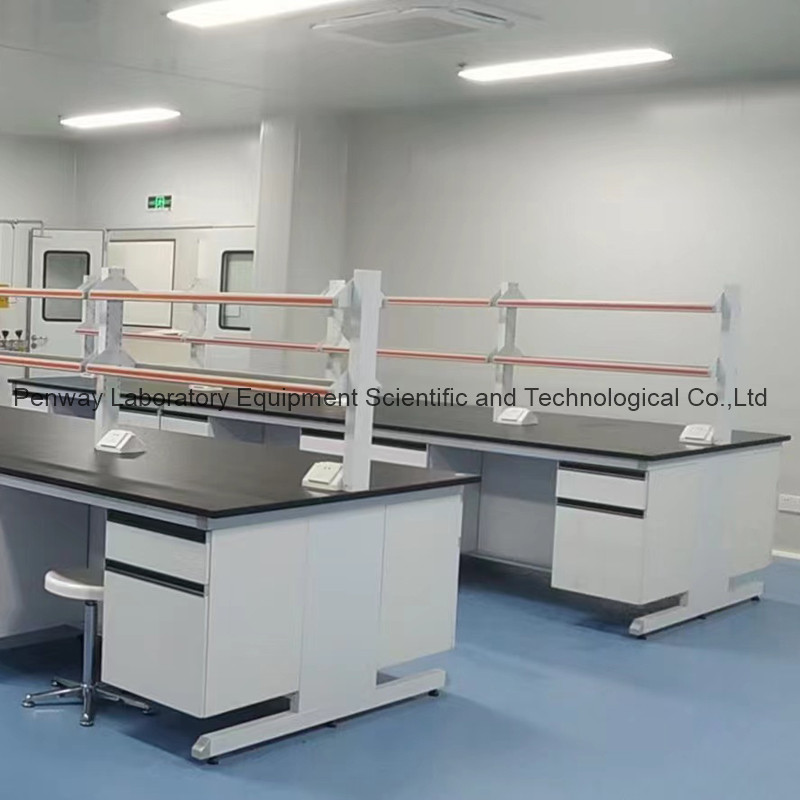

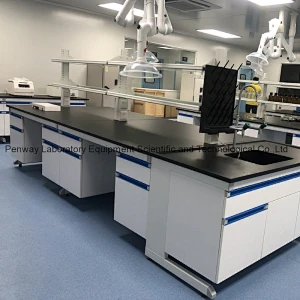

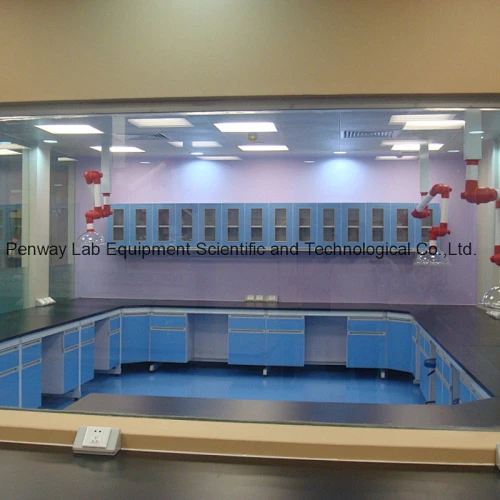

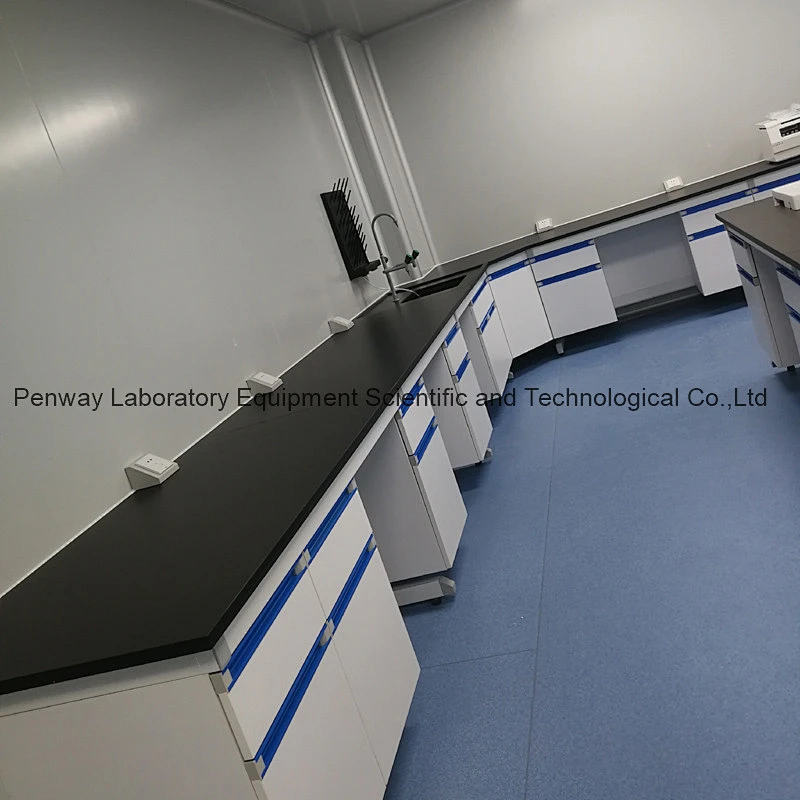

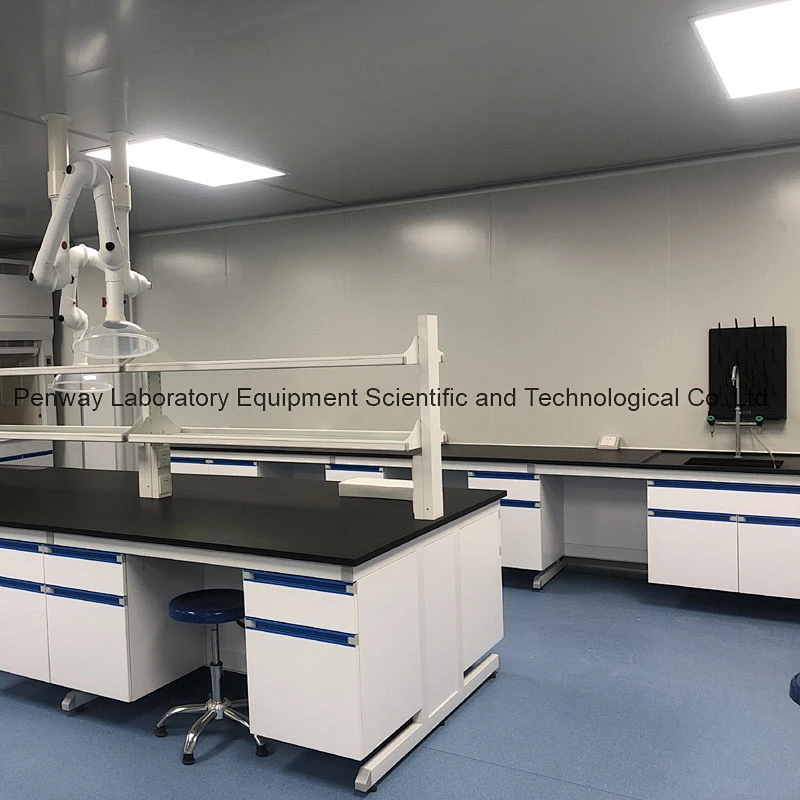

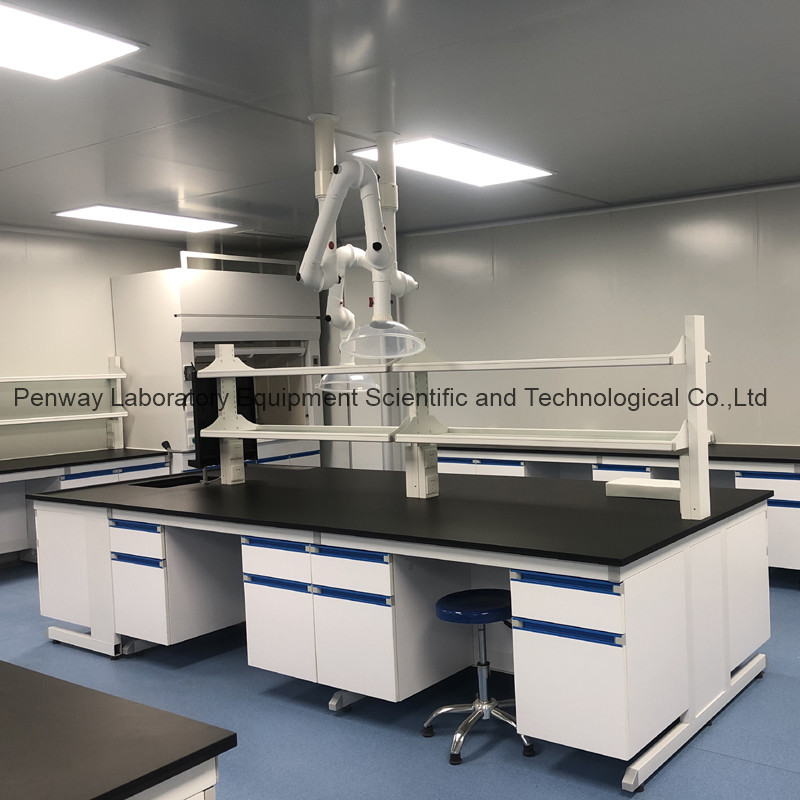

Durable Science School University Chemistry Steel Lab Bench Lab Furniture
Steel and wood structure is the modern laboratory preferred structure type. Structure of steel and wood with high strength bearing quality, good flexibility, excellent corrosion resistance, the use of humanization of real rooms, more convenient maintenance etc.

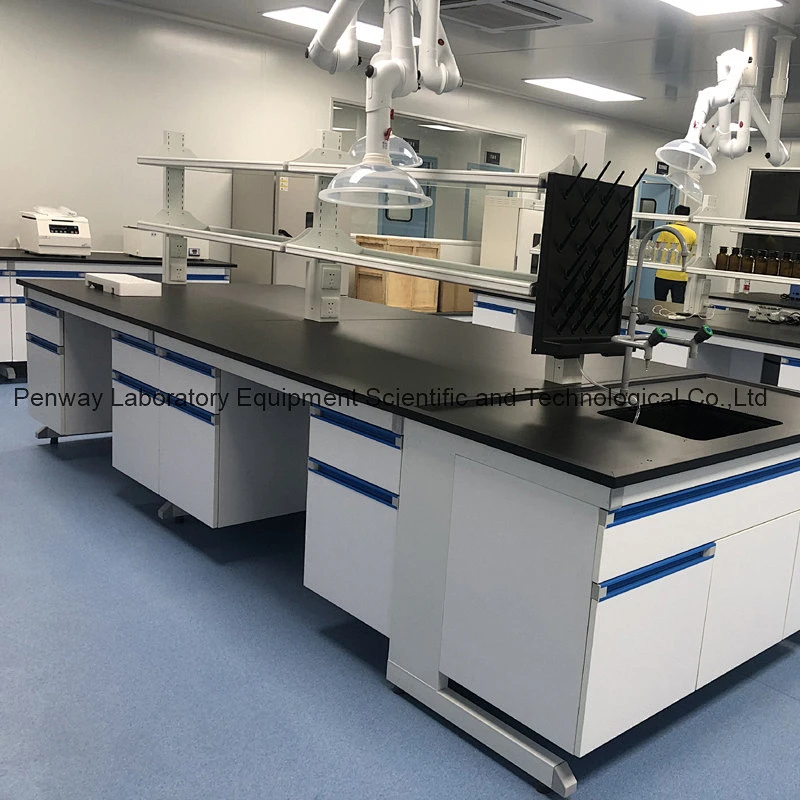

Suspended System The worktop is supported by cantilever steel frame system. Cupboard and drawer units are suspended from horizontal rails beneath the worktop. The under-bench units have been designed to provide clear access to the floor for cleaning.
Frameworkuses 40*60*1.5 mm quality C type steel, joint is connected by cold rolled steel sheet stamping a integrated special fittings, making the whole frame structure more reasonable. The bearing performance and stability of the platform is especially strong; Steel surface by acid, phosphate, electrostatic powder spraying process, has the corrosion resistance, fire prevention, moisture-proof function etc. Surface treatment: C type steel frame in the production is completed, the pretreatment includes many steps: cleaning agents, aerosol spray, rinse water, passivation seal materials coating after the pretreatment of steel products in drying oven for drying and cooling; After cooling steel products to spray chamber in internal and external spray powder, its thickness at least 1.5 mils to finish bottom spray steel products immediately sent to the high temperature constant temperature box for grinding and chemical processing, in order to apply the test environment to use.
Framework uses 40*60*1.5 mm quality C type steel with 75μm epoxy resin powder coating,chemicals resistant.
18mm thick high pressure semi-solid wood (MDF) covered with 0.4mm high pressure laminate(HPL) on both sides with 3mm PVC edging strips.
Shelf: made of 12mm thick frosted glass; Frame: made of 100*40*1.5mm steel tube coated with powders.
850 or 900mm, (height adjustable 0-30mm)
12.7/16/19mm thickness of Phenolic resin or other (Epoxy resin, ceramic, marble etc)
DTC105 degree high quality hinge
Self-closing three section slide rail, no noise.
Aluminum alloy embedded handle
Socket, faucet, gas fitting, eyewash, pegboard, shelves, exhaust hood etc
